| Engine Model | YC6K1034-30(K2301) |
| Rated Power/Speed | 250 kW (340 HP) @ 2200 rpm |
| Max Torque/Speed | 1400 N·m @ 1400-1800 rpm |
| Emission Standard | Euro III / China III (GB17691-2005) |
| Application Field | Heavy-duty trucks, construction machinery, long-haul trailers |
| Key Features | High reliability, low fuel consumption, large torque reserve |
Compatibility & Application
All parts are 100% compatible with Yuchai Joint Power YC6K1034-30(K2301) 6-cylinder turbocharged diesel engine (10.3L displacement, 340 HP). Designed for heavy-duty trucks, construction machinery, and long-haul trailers, our parts perfectly match the engine's high-torque and long-working-hour demands.
Parts Coverage
Our parts fully cover core systems: power core (cylinder block, piston-rod, camshaft), fuel & air (injection pump, turbocharger, intake/exhaust manifold), lubrication & cooling (oil pump, filter, water pump), and electrical & control (starter, alternator, ECU).
Quality Assurance
All parts adhere to strict technical standards, with part numbers consistent with the original catalog. Key components use high-strength alloy and precision casting, ensuring durability under high load. We offer an 18-month global warranty.

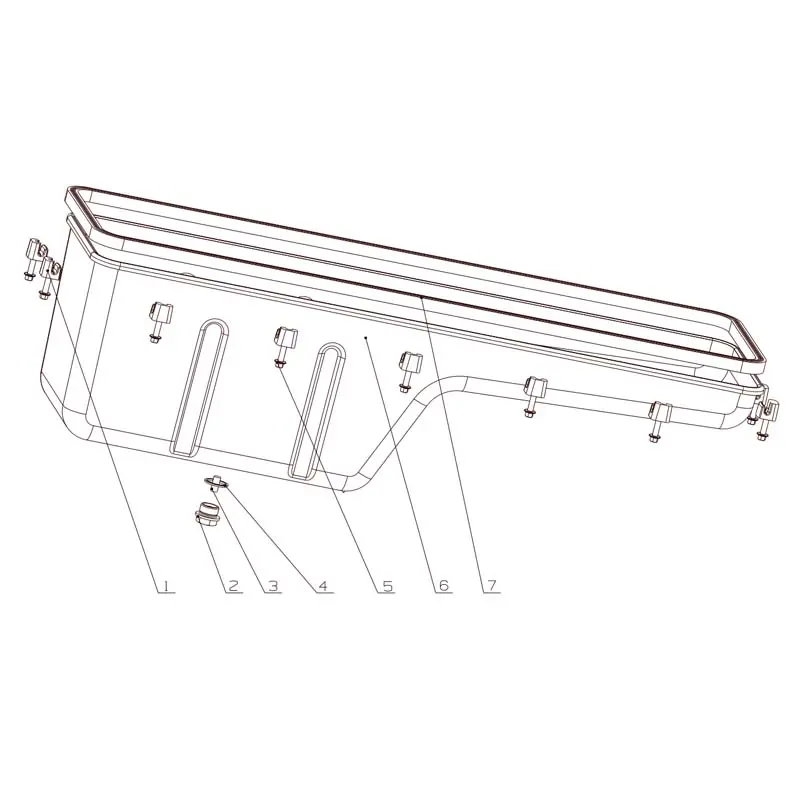

1. K2000-1009000 Oil Sump Assembly
| No. | Parts No. | Qty. | Part Name | Remark |
|---|---|---|---|---|
| 1 | M1000-1009305 | 14 | Oil pan hook | - |
| 2 | 6105Q-1009031C | 1 | Oil drainage magnet | - |
| 3 | 6105Q-1009032A | 1 | Oil drainage | - |
| 4 | Q/YC149-27 | 1 | Sealing ring 27 | Easy Wear Part |
| 7 | K2000-1009001 | 1 | Oil pan gasket | Easy Wear Part |

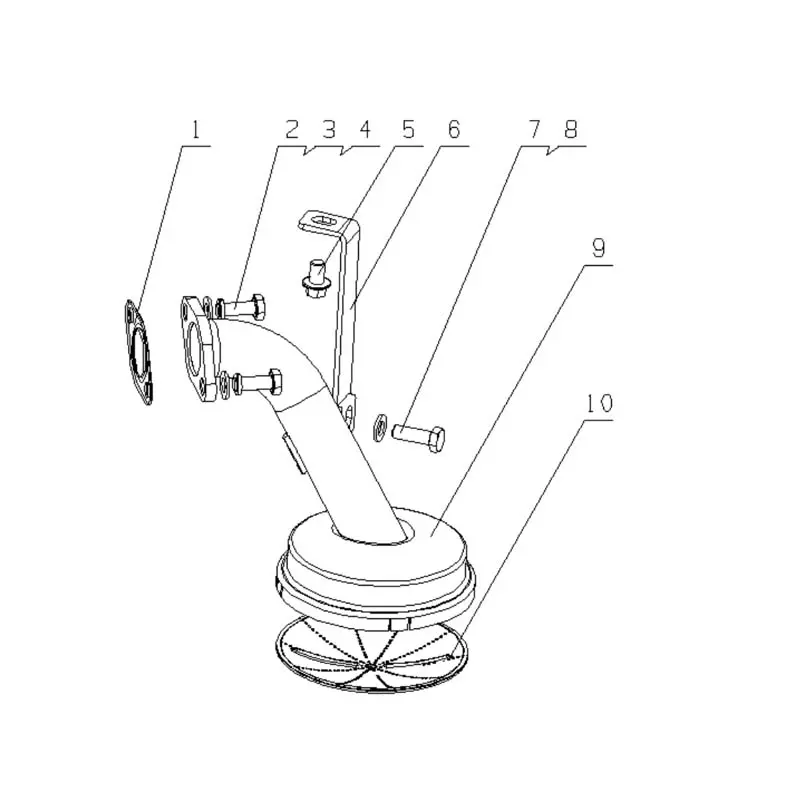

2. M6600-1010000 The Oil Filter Assembly
| No. | Parts No. | Qty. | Part Name | Remark |
|---|---|---|---|---|
| 1 | MKB00-1010109 | 1 | Gasket | - |
| 6 | M3000-1010105 | 1 | Oil inlet pipe bracket | - |
| 9 | M6600-1010100 | 1 | Oil inlet pipe weldment | - |

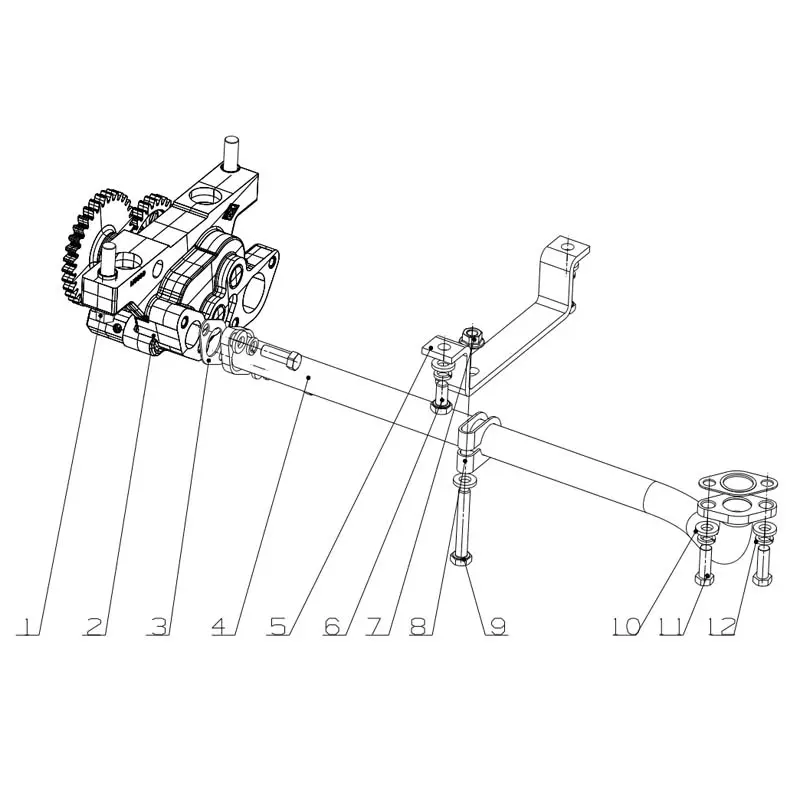

3. K2000-1011000 The Oil Pump Assembly
| No. | Parts No. | Qty. | Part Name | Remark |
|---|---|---|---|---|
| 2 | M6600-1011100 | 1 | Oil pump weldment | - |
| 3 | MKB00-1011205 | 2 | Ring | Easy Wear Part |
| 4 | M6600-1011200A | 1 | Oil outake pipe weldment | - |
