| Engine Model | YC4F115-30(F50SA) |
| Rated Power | 85kW (115HP) @ 3200 rpm |
| Rated Torque | 285 N·m @ 2200 rpm |
| Emission Standard | Euro III (GB17691-2005 China III) |
| Aspiration Method | Turbocharged & Intercooled |
| Application | 6m Bus, Pickup, SUV, Light-duty Commercial Vehicles |
Confirm Compatibility
All parts are 100% compatible with Yuchai YC4F115-30(F50SA) turbocharged intercooled diesel engine. This 4-cylinder in-line model has 2.66L displacement, 85kW (115HP) rated power at 3200 rpm. Widely used in 6m buses, pickups, SUVs, and light-duty commercial vehicles, our parts perfectly match the engine's specs for daily maintenance or emergency repairs.
Parts Coverage
Our parts cover key systems of YC4F115-30(F50SA): cylinder block & head, lubrication (oil sump, pump, filter), fuel injection (injection pump, injector), cooling & turbo (water pump, thermostat, turbocharger), and electrical & auxiliary parts (alternator, starter, sensors).
Quality Assurance
All parts adhere to Yuchai's technical standards. Parts use high-durability materials and pass strict tests. We offer a 12-month warranty and 24-hour technical support with English guidance.

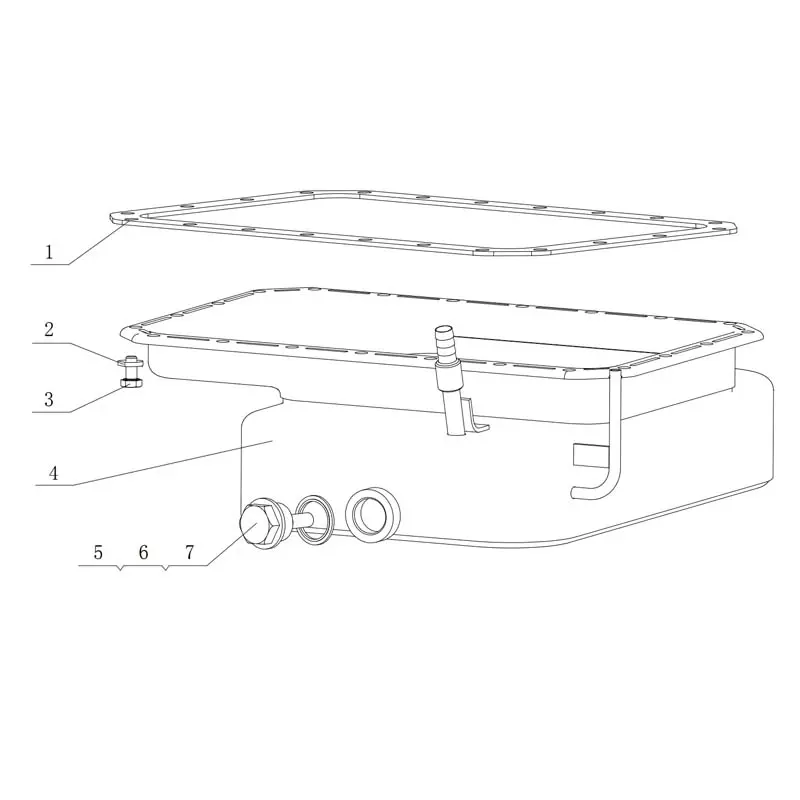

1. F30JA-1009000/01 Oil Sump Assembly
| Item | Part No. | Name | Qty | Remark |
|---|---|---|---|---|
| 1 | F3000-1009001 | Oil sump gasket | 1 | Easy Wear Part |
| 2 | D30-1009102A | Washer | 22 | - |
| 3 | Q150B0816TF2 | Bolt M8X16 | 22 | - |
| 4 | F30JA-1009040A | Oil sump assembly | 1 | - |
| 5 | 6105Q-1009031C | Oil drain plug | 1 | - |
| 6 | 6105Q-1009032A | Oil drain plug magnet | 1 | - |
| 7 | Q/YC149-27 | Seal washer 27 | 1 | Easy Wear Part |
2. F50JG-1028000/01 Oil Dipstick Assembly
| Item | Part No. | Name | Qty | Remark |
|---|---|---|---|---|
| 1 | M32B1-1009080A | Oil dipstick weldment | 1 | - |
| 2 | 155-1009043B | Oil dipstick seat | 1 | - |
| 3 | F30SA-1009009 | Oil dipstick support plate | 1 | - |

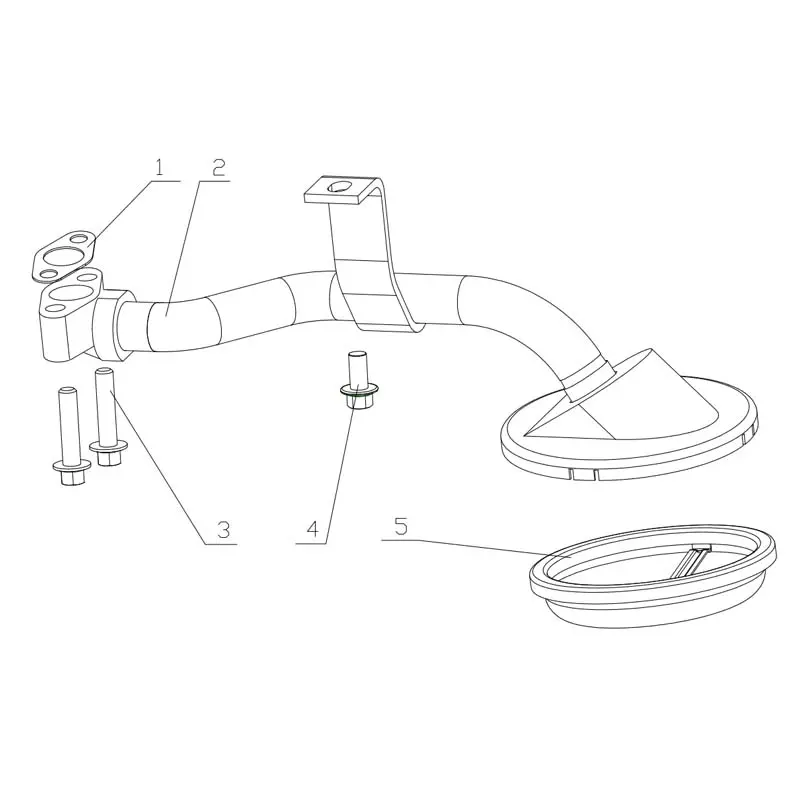

3. F3000-1010000A/05 Oil Strainer Assembly
| Item | Part No. | Name | Qty | Remark |
|---|---|---|---|---|
| 1 | F3000-1010003C | Oil strainer spacer | 1 | Easy Wear Part |
| 2 | F3000-1010100D | Oil suction pipe weldment | 1 | - |
| 5 | 530-1010030 | Filter screen subassembly | 1 | - |

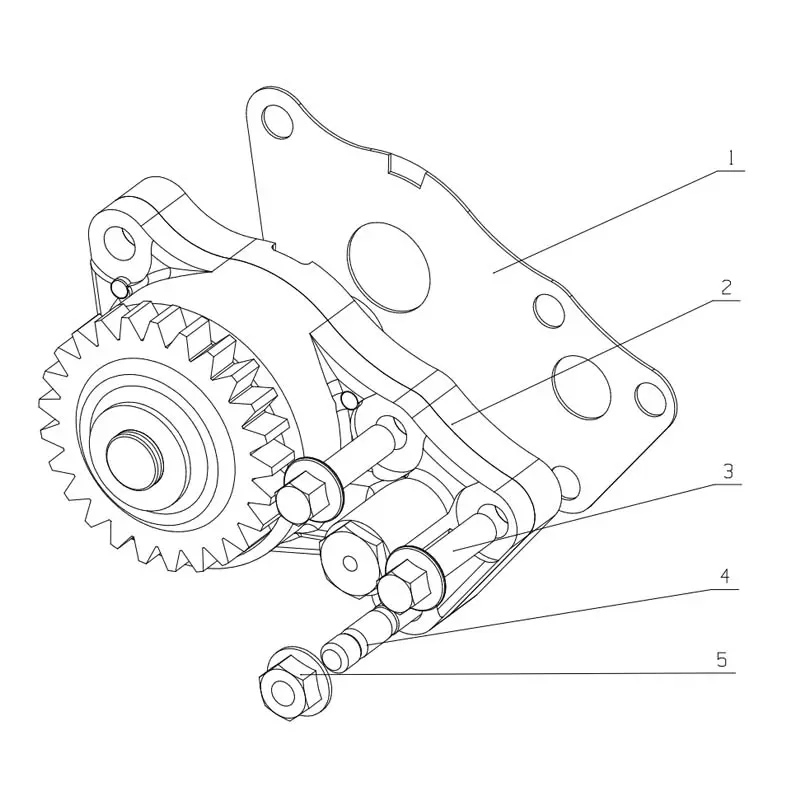

4. F3000-1011000/05 Oil Pump Assembly
| Item | Part No. | Name | Qty | Remark |
|---|---|---|---|---|
| 1 | F3000-1011007 | Oil pump washer | 1 | Easy Wear Part |
| 2 | F3000-1011100 | Oil pump part | 1 | - |
| 3 | Q/YC207-0830 | Bolt | 4 | - |
5. 186-1012000/04 Oil Filter
| Item | Part No. | Name | Qty | Remark |
|---|---|---|---|---|
| 1 | 186-1012000 | Oil filter | 1 | Easy Wear Part |
