| Engine Model | YC6L330-42(L6200) |
| Rated Power/Speed | 243 kW (330 HP) @ 2200 rpm |
| Max Torque/Speed | 1200 N·m @ 1400-1800 rpm |
| Emission Standard | Euro IV / China IV |
| Application Field | Heavy-duty trucks, medium/heavy buses, construction machinery (loaders/excavators) |
| Key Features | High reliability, low fuel consumption, large torque reserve |
Compatibility & Application: All parts are 100% compatible with Yuchai YC6L330-42(L6200) 6-cylinder turbocharged diesel engine (8.4L displacement, 330 HP). Designed for heavy-duty trucks, medium/heavy buses and construction machinery, our parts perfectly match the engine’s high-load and long-working-hour characteristics.
Parts Coverage: Our parts fully cover core systems: power core (cylinder block, piston-rod, camshaft), fuel & air (injection pump, turbocharger, intake/exhaust manifold), lubrication & cooling (oil pump, filter, water pump), emission control, and electrical & control systems. Easy-wear parts are clearly identified for quick selection.
Quality Assurance: All parts adhere to strict technical standards, with part numbers consistent with the original catalog. Key components use high-strength alloy and precision casting. We offer an 18-month global warranty to support installation, maintenance and compatibility verification.

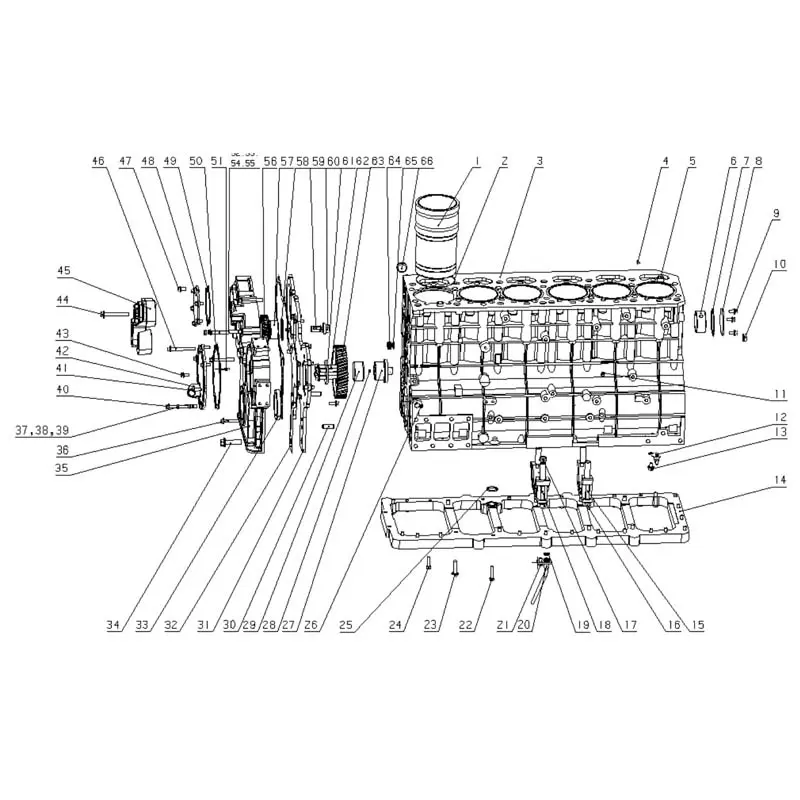

| No. | Parts No. | Part Name | Qty. | Remark |
|---|---|---|---|---|
| 1 | L3000-1002106B | Cylinder liner | 6 | |
| 2 | L3000-1002063 | Cylinder cover water sealing ring | 6 | Easy Wear Part |
| 3 | L4700-1002114B | Cylinder block | 1 | |
| 6 | L3000-1002011 | Camshaft bushing | 7 | Easy Wear Part |
| 20 | L3000-1002110A | Oil return tube weldment | 1 | |
| 25 | 150-1013031 | O seal ring | 1 | Easy Wear Part |

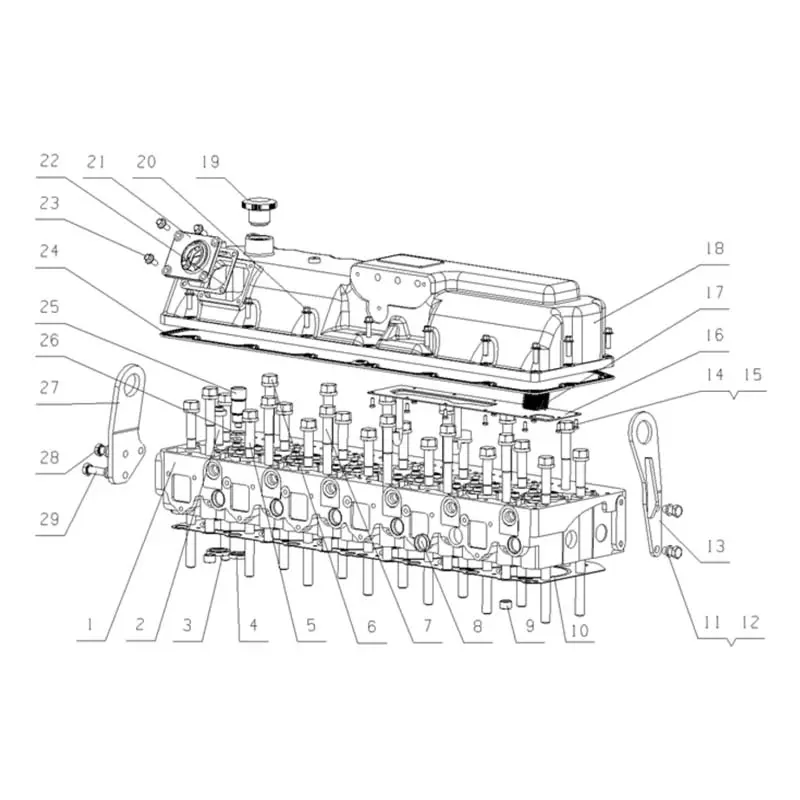

| No. | Parts No. | Part Name | Qty. | Remark |
|---|---|---|---|---|
| 1 | L4700-1003171C | Cylinder head | 1 | |
| 10 | L3000-1003001-386 | Cylinder head gasket | 1 | Easy Wear Part |
| 24 | L3000-1003022A | Cylinder head cover gasket | 1 | Easy Wear Part |
| 26 | YC208-B02580S | O seal ring 2.65X25.8 | 6 | Easy Wear Part |

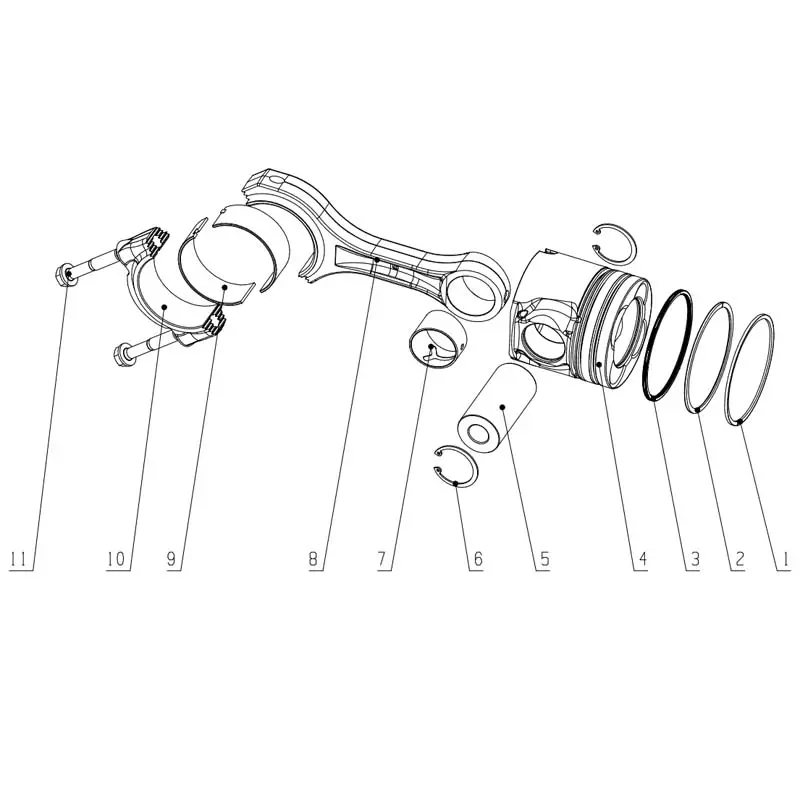

| No. | Parts No. | Part Name | Qty. | Remark |
|---|---|---|---|---|
| 1 | L3000-1004002 | 1st ring | 6 | Easy Wear Part |
| 3 | L3000-1004100 | Oil ring assembly | 6 | Easy Wear Part |
| 4 | L4700-1004001 | Piston | 6 | Easy Wear Part |
| 9 | L3000-1004022A | Con-rod tile | 12 | Easy Wear Part |
Produced on Yuchai’s original production line, 1:1 matching the engine.
Precision-machined to meet YC6L330-42(L6200) technical specifications.
High-quality materials, passed 300,000+ working hours test.
12-month warranty, free replacement for quality issues.
